Hardfaced | Cladded Abrasion / Wear Resistant Pipe
Pipe Hardfaced | Cladded with Premium Abrasion Resistant Materials to Provide a Long Service Life

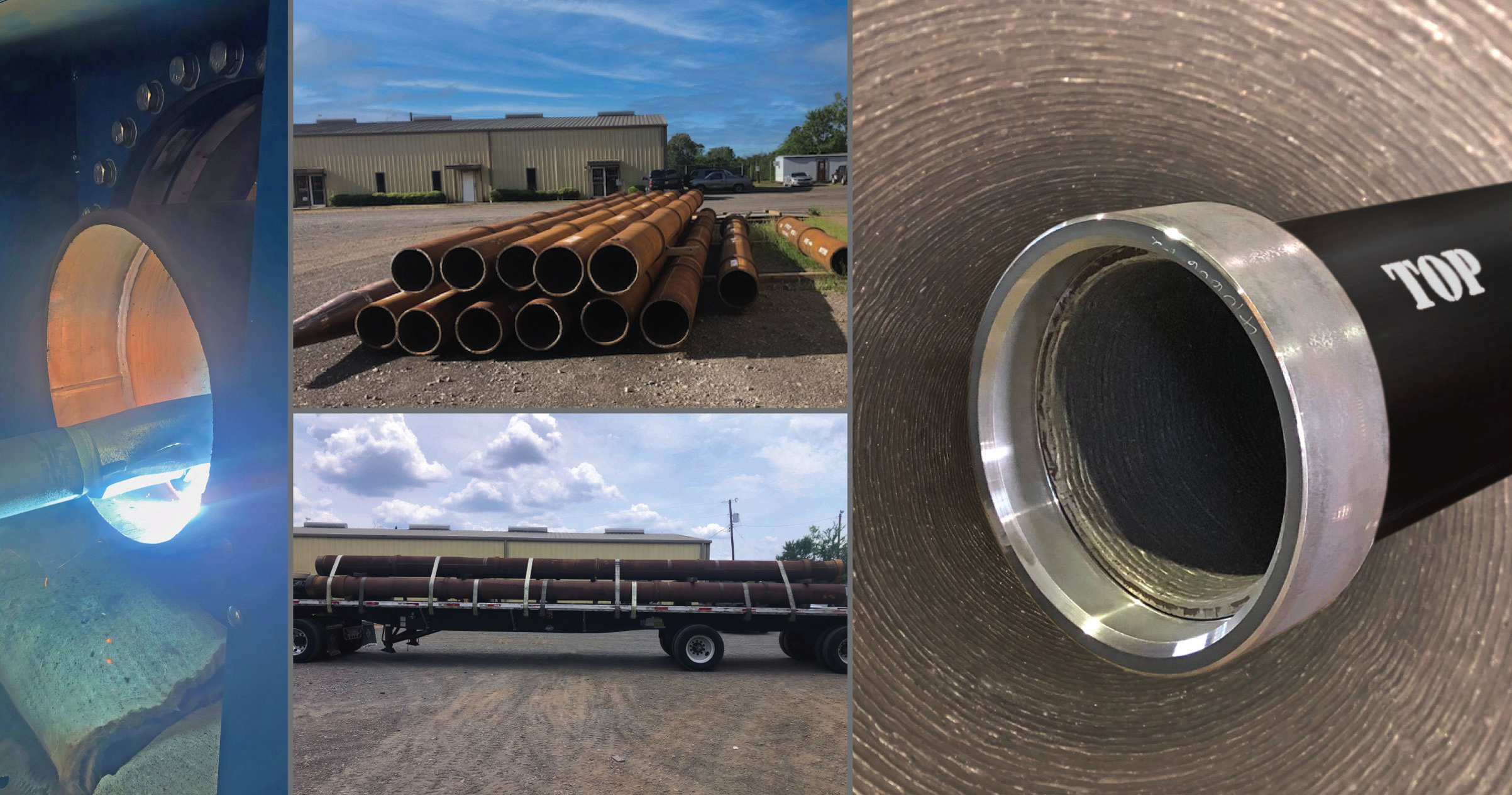

Cladtec, division of SAS Global, proudly manufactures CLADPIPE™ in the USA. CLADPIPE is a composite wear resistant pipe with the inner diameter cladded with one of Cladtec’s premium hardfacing materials. The standard base pipe utilized will typically be an extra heavy walled A53 Grade B pipe However, other base pipe materials can be used to meet project specific requirements.
Cladtec manufactures CLADPIPE utilizing the latest in machine/computer automated pipe cladding equipment. This ensures you receive only the highest quality product.
Manufacturing Specifications:
- Cladtec can produce CLADPIPE ranging from a 5.5” finished inner diameter (with cladding applied) to a maximum 26” inside diameter pipe. (special runs up to 30” ID may be possible based on wall thicknesses)
- Manufactured in up to 40 foot long sections depending upon overall specifications.
- NOTE: 5.5” to 8” finished inner diameter pipes are manufactured in 10’ sections

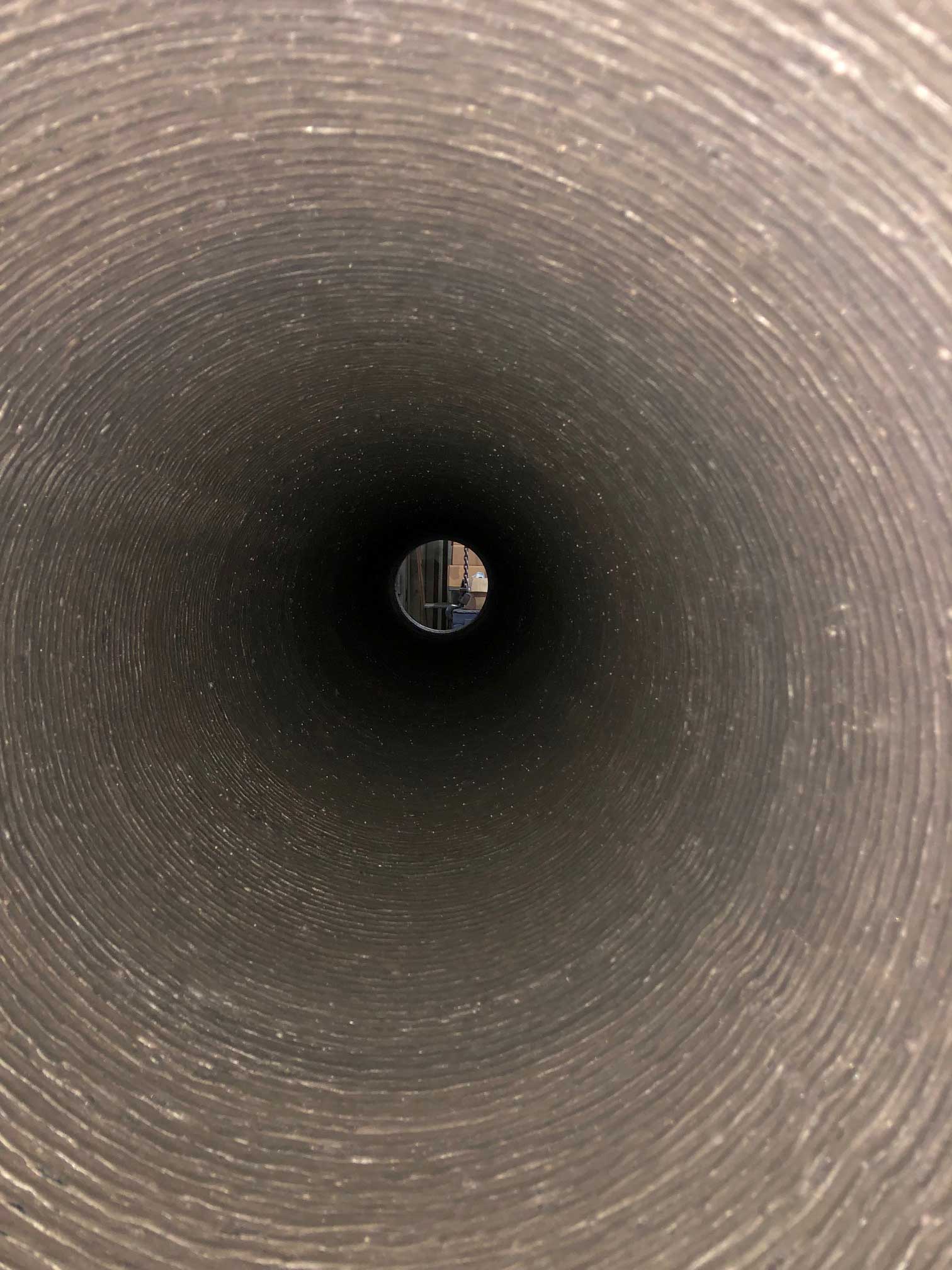

- Piping can be cladded with beads running circumferential.
- 1/4“ wide weld beads.
- Cladding thickness: 1/8” through 1/2“ depending on hardfacing material utilized.
- Straightness tolerance of 3/8” per 48” of length.
Some of the Premium SAS Global material options available:
- SA6000 Patented Microstructure Complex Carbide Overlay Plate
- SA2000 Premium Complex Carbide Overlay Plate

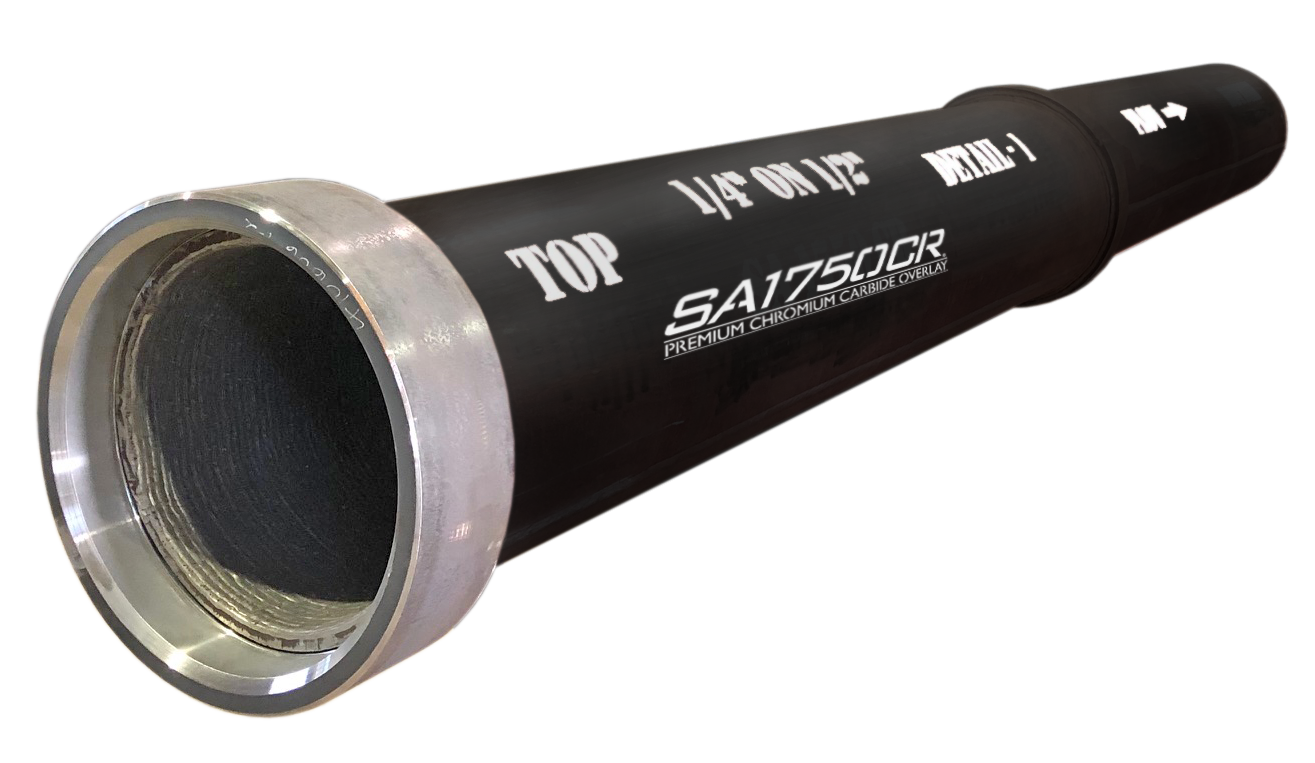

- SA1750CR Premium Chromium Carbide Overlay Plate
- CT-28 Premium Hardfacing
