Up to 20X the Life! SA6000 Patented Complex Carbide Overlay Plate EX5500 Clam Liner Case History

A large hard rock gold mine installed a SA6000® Patented Complex Carbide Plate Liner on their EX5500 Clam. It was recently inspected after running for a total of 8,230 service life hours over a duration of 18 months. The SA6000® surface shows such little wear that the weld seams have not even been worn away! For comparison, our SA1750CR® Chromium Carbide liners last between 10 and 11 months. We estimate the SA6000® will provide up to 20X the life at the current wear life!

Service Life at Inspection (Months): 18

Service Life at Inspection (Hours): 8,230

Average Thickness Loss at Inspection (Inches): 0.0136”

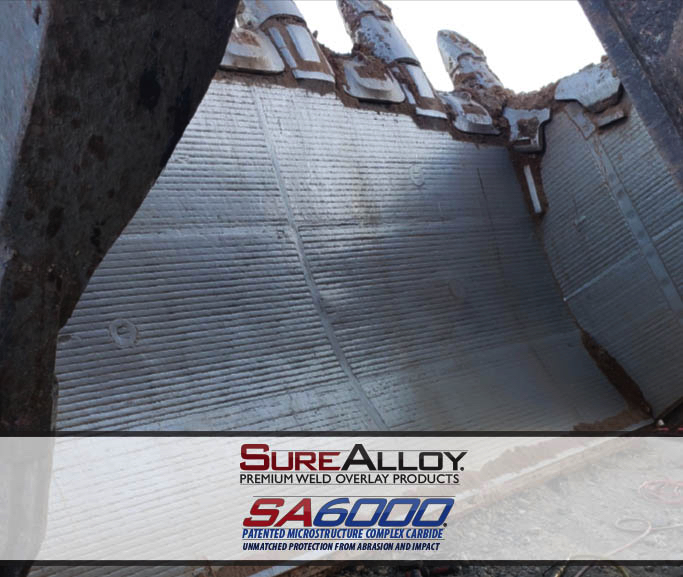

SA6000 Patented Complec Carbide Overlay Plate Clam Liner

Mining Truck Bed Tail Section Liner Still Going Strong After 10 Years in Service

CAT 793D Series SAS Global Premium Truck Bed Liner

A large hard rock gold mining facility recently performed a scheduled inspection and maintenance on one of their CAT 793D haul trucks. This bed was removed from service due to the alloy steel ahead of the SA1750CR Premium Chromium Carbide Overlay Plate tail section needing to be replaced. This truck had been utilizing the same SAS Premium Liner System for 10 years!

During this maintenance, the SAS Global SA1750CR Tail Section Liner only had a few hot spots. These simply required hand overlay via hardface welding, which was done in the field. The back 90" SA1750CR liner was then released back into production for a second time.

The thickness inspection revealed the SA1750CR Tail Section only lost 0.187” (just about half the starting thickness), and the wall liners only show very slight signs of wearafter 65,000 hours of service over the last 10 years!

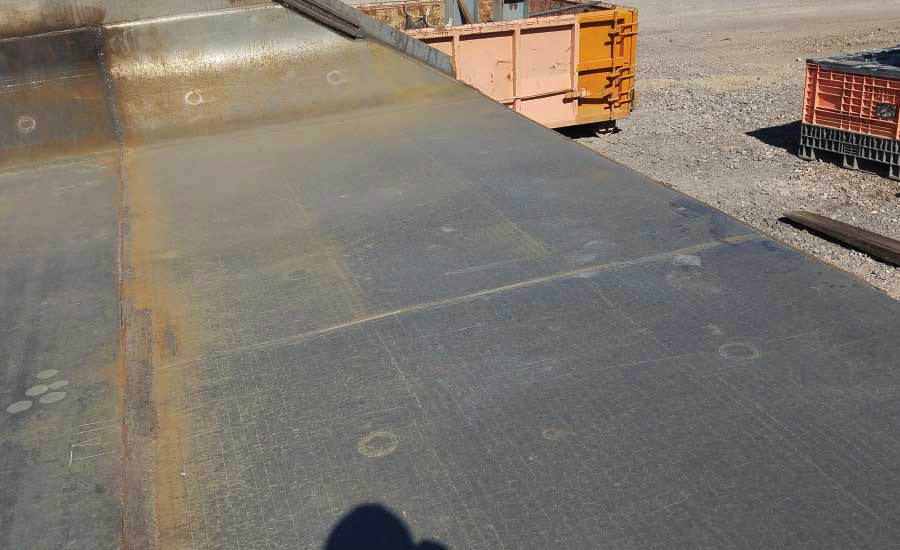

SA1750CR Chromium Carbide Overlay Plate Truck Bed Tail Section Liner After 10 Years In Service.

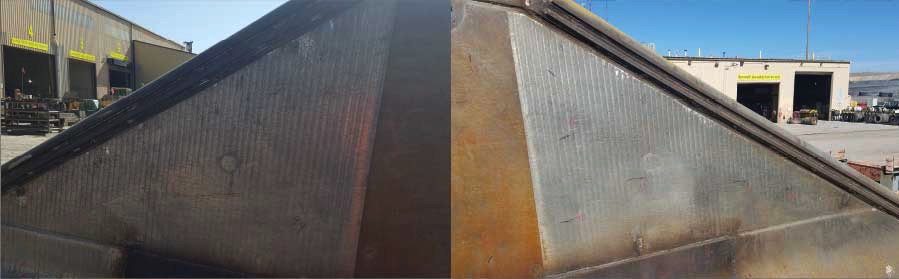

SA1750CR Chromium Carbide Overlay Plate Truck Bed Tail Section Side Liners After 10 Years In Service.

Apron Feeder Chute Liners Still Going Strong After 5 Years in Service

Fabricated from SureAlloy® SA1750CR® Premium Chromium Carbide Overlay Plate

A large hard rock gold mining facility installed SA1750CR Premium Chromium Carbide Overlay Plate apron feeder liners into their transfer chute system in 2015. Material from the pit is dumped directly into this system from the haul trucks. These liners were just inspected in August of 2020 and all appear to still be in good shape. These SA1750CR Liners have been in service for 5 years and are still going strong!

SA1750CR Chrome Carbide Overlay Plate Chute Liners

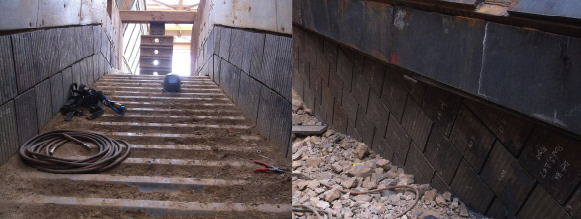

SA1750CR Premium Chrome Carbide Overlay Plate Liners at time of installation.

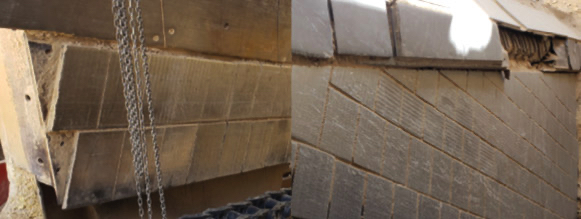

SA1750CR Chrome Carbide Overlay Plate Liners after 5 Years

SA1750CR Premium Chrome Carbide Overlay Plate Liners after 5 Years in Service.
