ACFM (Advance Coal Flow Measurement): Computer-Controlled Isokinetic Coal Pipe Testing

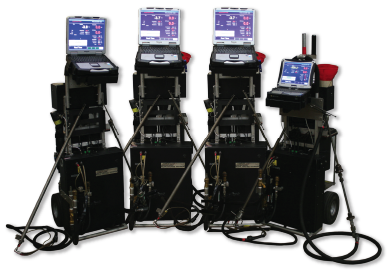

The Advanced Coal Flow Measurement System (ACFM) was designed and developed strictly to measure air and fuel flows through coal pipes. It is a computer-controlled PC-based isokinetic extraction type testing system. It utilizes a dirty air probe for air flow measurement, and (3) types of advanced coal sampling probes. Probe types are shown to the lower left.

The computer controlled isokinetic extraction rate is adjusted point-by-point to maintain 100% isokinetic coal extraction across the pipe velocity profile. Each pipe is carefully tested to assure accuracy within 3% for air and 6% for coal. Any deviation out of this tolerance will nullify that particular test and restart another.

Special Features:

Fast and accurate test results
Self adjusts to extract 100% isokinetic
Fuel flows automatically moisture correct
Comprehensive report
Easy to understand data format
Rapid ROI of testing expenditure

Date Obtained:

Coal flow rate
Primary air flow
Primary air velocity
Primary air temperature
Air / coal ratio
Air velocity profile
Static & total pressures
Relative humidity
Dew point

Date Reported:

Coal & air flow rates
Coal pipe balance
Coal fineness
Air velocity profile
Comparision of measured flows to plant intrumentation
Suspected causes of problems
Recommendations

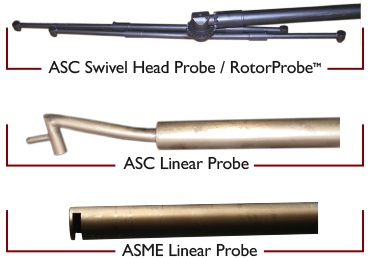

Types of Extractive Probes Used:

Depending on the testing situation, SAS can utilize different coal extracting probes to insure the best possible results. SAS Global utilizes (3) different style probes; an ASC Linear Probe, ASME Linear Probe, ASC Swivel Head Probe, or RotorProbeTM.

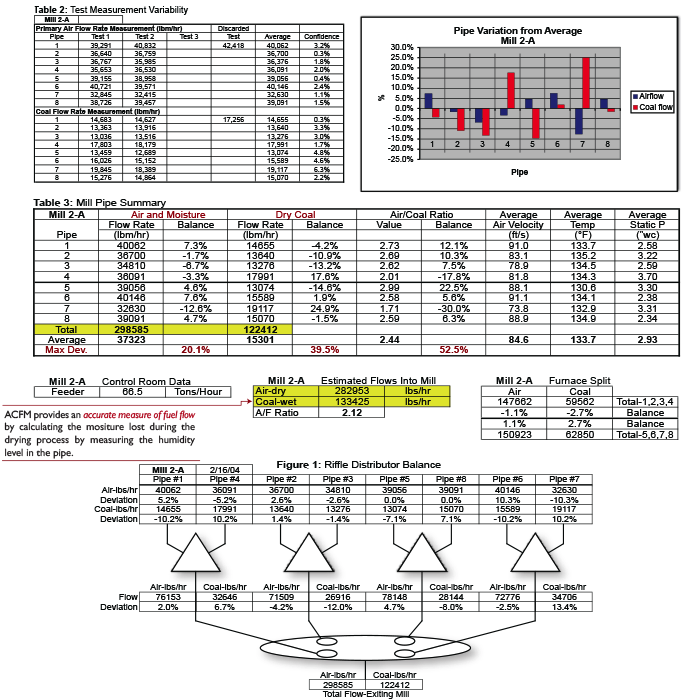

ACFM Data Collection Example: CE Pressurized Mill with 8 Pipes

Discuss Your Fuel Pipe Testing Needs with SAS
