Line Blank Isolation Vales and Sliding Plate Style Orifices

SAS Line Blank Isolation Valves / Plates

Line Blank Isolation Valves

The SAS Line Blank Isolation Valve is an economical and effective way to isolate a coal pipe. Constructed out of heavy-duty A-36 steel for a long trouble free service life. The SAS Line Blank is available in full or half penetration designs.

Key Features:

Easy Installation
Heavy Duty Construction
Offered in Full and Half Penetration
Clean-Out Plugs
Quick and Easy Pipe Isolation
Offered in Butt-Weld, Victaulic and Flanged

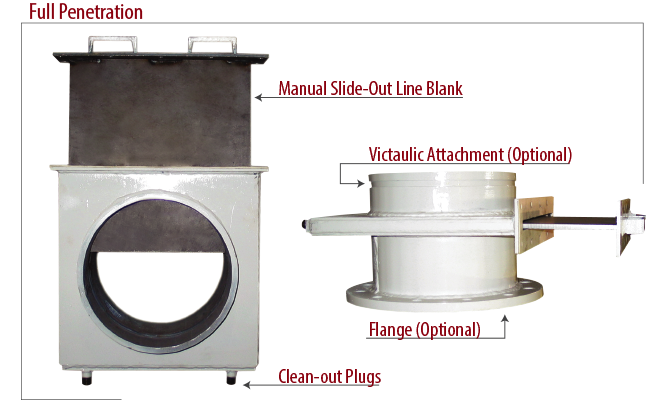

Full Penetration Line Blank Isolation Valve

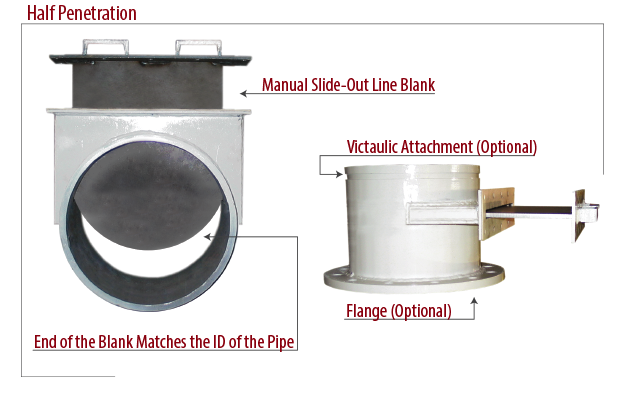

Half Penetration Line Blank Isolation Valve

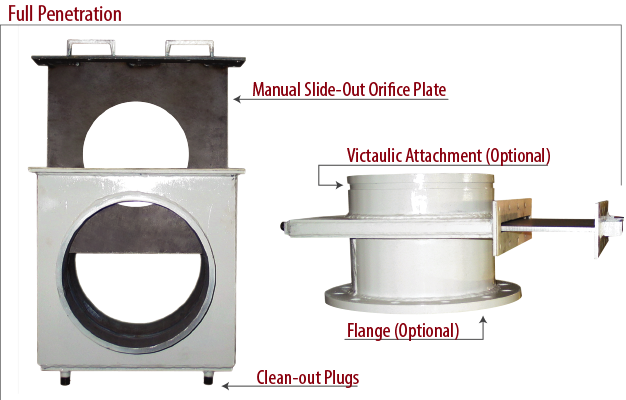

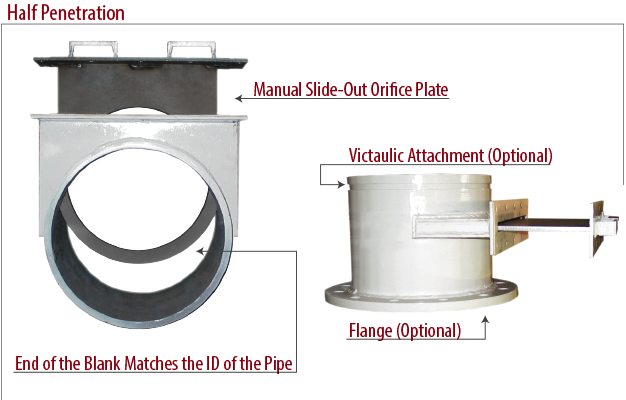

SAS Plate Style Orifices

Plate Style Orifices

The SAS Line Blank Isolation Valve is an economical way to orifice a coal pipe. The housing is constructed out of heavy-duty A-36 steel and the plate orifices from a premium wear resistant steels for a long trouble free service life. The SAS Plate Style Orifice Box is available in full or half penetration designs.

Key Features:

Easy Installation
Heavy Duty Construction
AR Steel Orifice Plate(s)
Offered in Full and Half Penetration
Clean-Out Plugs
Quick and Easy Pipe Restriction
Offered in Butt-Weld, Victaulic and Flanged
