SAS Global Patented CV-Style Adjustable Fuel Pipe Orifice

Fine Tune Your Pipe-to-Pipe Fuel Balance While Online

CV-Style Adjustable Orifice gives you the ability to fine tune your system balance as part of a complete balancing program. The unique Center V shape of the orifice provides a very smooth restriction curve not found in any other adjustable orifice. Unlike other adjustable orifices, the SAS CV-Style will never jam due to coal impaction. Its design ensures there are no areas where coal build-up can occur. The SAS CV-Style Orifice will remain adjustable, no matter how long they’ve been in use.

The CV-Style Adjustable Orifice is available with both a manual gear box adjustment or manual handle adjustment. Also engineered to fit within existing line blank spools, for a very quick plug and play installation.

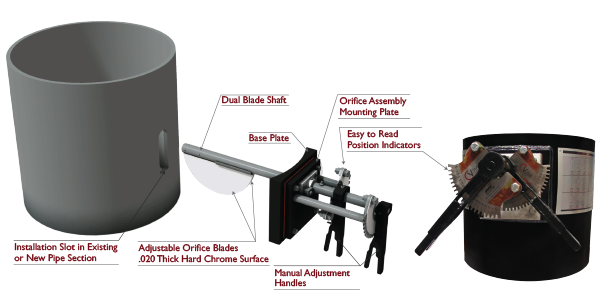

Patented CV-Style Adjustable Orifice with Manul Handles

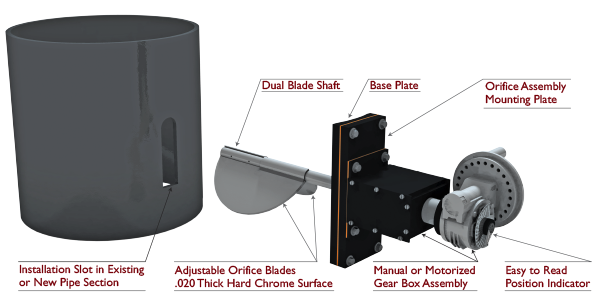

Patented CV-Style Adjustable Orifice with Manual Gear Box

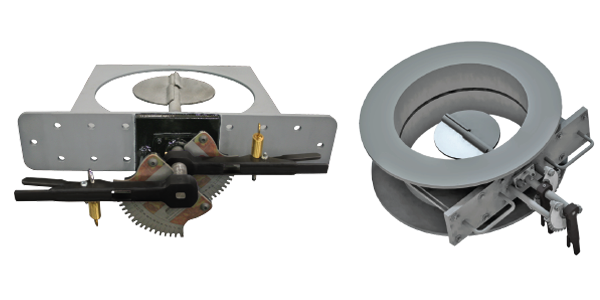

Patented CV-Style Adjustable Orifice - Isolation Valve Box Series

This series is custom designed to fit within an existing or new orifice / isolation valve box. These can be supplied with a line blank to isolate the fuel line. They are available with manual gear box or manual handle adjustment.

Very Smooth Restriction Curve

Note: The orifice can be sized to lower DP based upon specific requirements. SAS Global generally sizes the CV-Style Orifice to reduce the pipe area by a maximum of up to 38%
