Rotary Hammer Mill Performance Screen System Upgrade

Engineered for improved fineness control, increased service life, ease of maintenance, and improved safety

SAS developed this new, high performance screen concept though its years of experience providing replacement wear parts for these and other types of crushers. This SAS design eliminates the multiple-bar screening arrangement with a three panel interchangeable screen plate system.The easily interchanged panels are engineered to achieve optimum balance between throughput and fineness to meet specific fueling requirements.

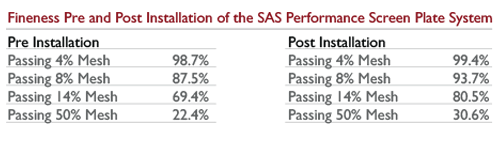

  • Provides a consistent improved level of fineness over the OEM bar arrangement.
  • Drastically reduces installation time and safety over the OEM bar arrangement.
  • Eliminates handling and inventory of the individual OEM bars.
  • Manufactured from Vanguard Alloy Wear Plate and SureAlloy Premium Carbide Overlay Plate for increased service life and maintained fineness levels.

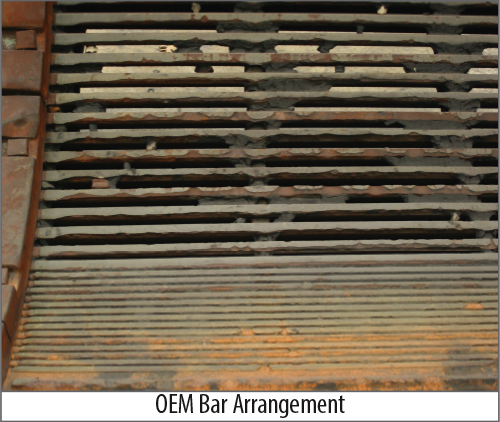

Rotary Crusher with OEM Bars

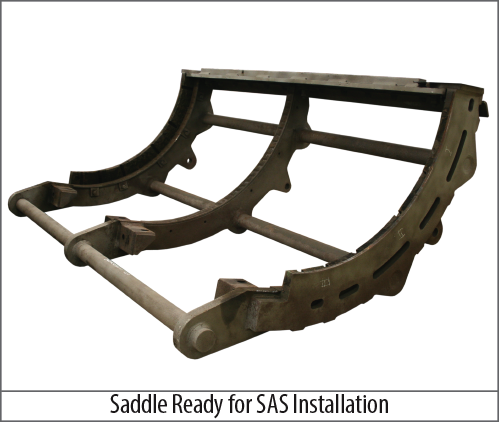

Rotary Crusher Saddle

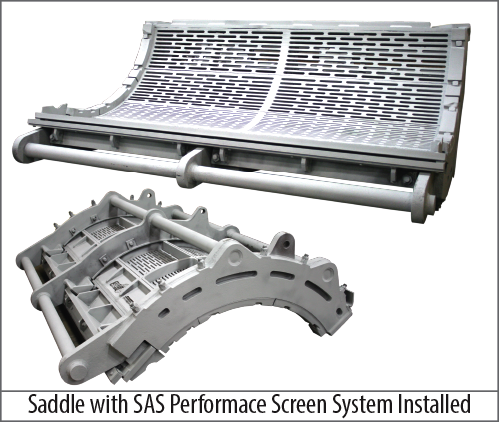

Rotary Crusher with SAS Performance Screen System
Rotary Crusher with SAS Performance Screen System
