Asphalt Wear Resistant Screed Plate | Paver Floor Liners | Components and Services


Increase Service Life • Increase Production • Reduce Maintenance • Reduce Downtime

SAS Global is the complete source for all of your Mobile Asphalt Equipment wear protection needs. SAS Global not only fabricates, but also develops and produces our own wear resistant materials to meet your specific needs and specifications.

Some of the wear resistant components and services offered by SAS Global are:

  • Asphalt Paver Screed Plates (Custom fabricated Screed Plate from Carbide Overlay Plate or Abrasion Resistant Steel)
  • Paver Floor Liners
  • Augers
  • High Performance Liner Systems
  • Hadfacing

SAS Global components are engineered to not only extend the service life of your equipment, but improve the operational performance as well. Premium wear resistant components manufactured to fit all major brands, including Barber-Greene, Astec Pavers, Volvo Pavers, Blaw-Knox, Allatt, Cedarapids, Leeboy, Bomag, and Vogele.

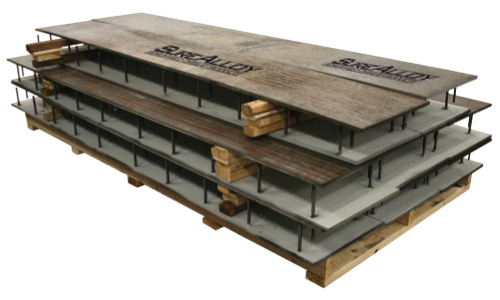

SAS Global Screed Plates

Screed Plates fabricated from SureAlloy Premium Carbide Overlay Plate

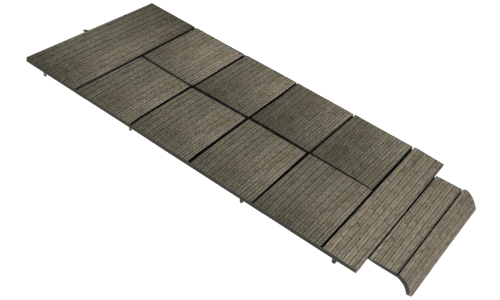

SAS Global Paver Floor Liners

Paver Floor Liners fabricated from SureAlloy Premium Carbide Overlay Plate

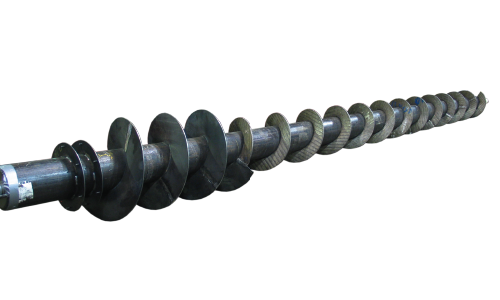

SAS Global Wear Resistant Auguers

Wear Resistant Auguers - Shown with SureAlloy Carbide Overlay Flights

SAS Global material options available:

  • SA6000 Patented Microstructure Complex Carbide Overlay Plate
  • SA2000Premium Complex Carbide Overlay Plate
  • SA1750CR Premium Chromium Carbide Overlay Plate
  • Vanguard Alloy Wear Plate (460/540 HB) Through Hardened
  • SA400 Alloy Wear Plate (360/440 HB) Through Hardened

SA2000® is a specially formulated complex carbide overlay plate designed to generate a high concentration of small primary carbides greatly improving wear resistance over conventional chromium carbide alloys. The refined microstructure containing harder complex carbides provides greater wear resistance and improved toughness. The inert refractory carbides present also increase the temperature resistance and corrosion resistance. Up to double the service life of standard chromium carbide overlay plate.


SA1750CR® is a Premium Chromium Carbide Overlay Plate consisting of a Hypereutectic Matrix with 50-60% Chromium Carbides metallurgically fused to an appropriate steel substrate. This large amount of hard chromium carbides allows SA1750CR to thrive in environments of extremely high abrasion.


SA6000® is the new future of overlay wear plate.  The patented microstructure of SA6000 is highly refined with tightly packed complex carbides. This fine grain microstructure reduces the propagation of cracks, which results in not only superior protection from abrasion, but also unheard of impact resistance!


SA-MCCTM was developed to satisfy the various application needs of our customers. SA-MCC Multiple Complex Overlays can be custom blended to provide material characteristics needed for specific wear resistivity.  For example, if the application requires increased impact resistance and temperature rating, the blend of complex carbides would have higher levels of Molybdenum and Niobium.


SAS Global Engineers a smooth surface finish on all SureAlloy® Premium Weld Overlay Products. The standard SureAlloy® surface finish can be blanchard ground to provide an even lower coefficient of friction for applications with heavy material hang-up issues. This premium surface is known as RapidFlow® Premium Surface Carbide Overlay Plate. The surface is ground and polished to a 0.2 Ra Micro-Meters finish. This finish is smoother than a stainless steel 304 with 2B finish.
