SureAlloy Premium Carbide Overlay Wear Plate | Chromium Carbide Plate | Complex Carbide Plate

SAS Global Corporation has over 60 years of expertise with abrasion resistant materials. During those 60 plus years SAS Global has developed equipment and a proprietary manufacturing method for producing Premium Carbide Overlay Wear Plate Products known as SureAlloy®. All of the alloys used in the creation of SureAlloy® are custom blended by SAS Global, enabling quality control from start to finish, and ensuring you receive the finest chromium carbide plate and complex carbide overlay plate available today.

SA6000® is the new future of overlay wear plate.  The patented microstructure of SA6000 is highly refined with tightly packed complex carbides. This fine grain microstructure reduces the propagation of cracks, which results in not only superior protection from abrasion, but also unheard of impact resistance!

LEARN MORE

SA2000® is a specially formulated complex carbide overlay plate designed to generate a high concentration of small primary carbides greatly improving wear resistance over conventional chromium carbide alloys. The refined microstructure containing harder complex carbides provides greater wear resistance and improved toughness. The inert refractory carbides present also increase the temperature resistance and corrosion resistance. Up to double the service life of standard chromium carbide overlay plate.

LEARN MORE

SA1750CR® is a Premium Chromium Carbide Overlay Plate consisting of a Hypereutectic Matrix with 50-60% Chromium Carbides metallurgically fused to an appropriate steel substrate. This large amount of hard chromium carbides allows SA1750CR to thrive in environments of extremely high abrasion.

LEARN MORE

SA-MCCTM was developed to satisfy the various application needs of our customers. SA-MCC Multiple Complex Overlays can be custom blended to provide material characteristics needed for specific wear resistivity.  For example, if the application requires increased impact resistance and temperature rating, the blend of complex carbides would have higher levels of Molybdenum and Niobium.

LEARN MORE

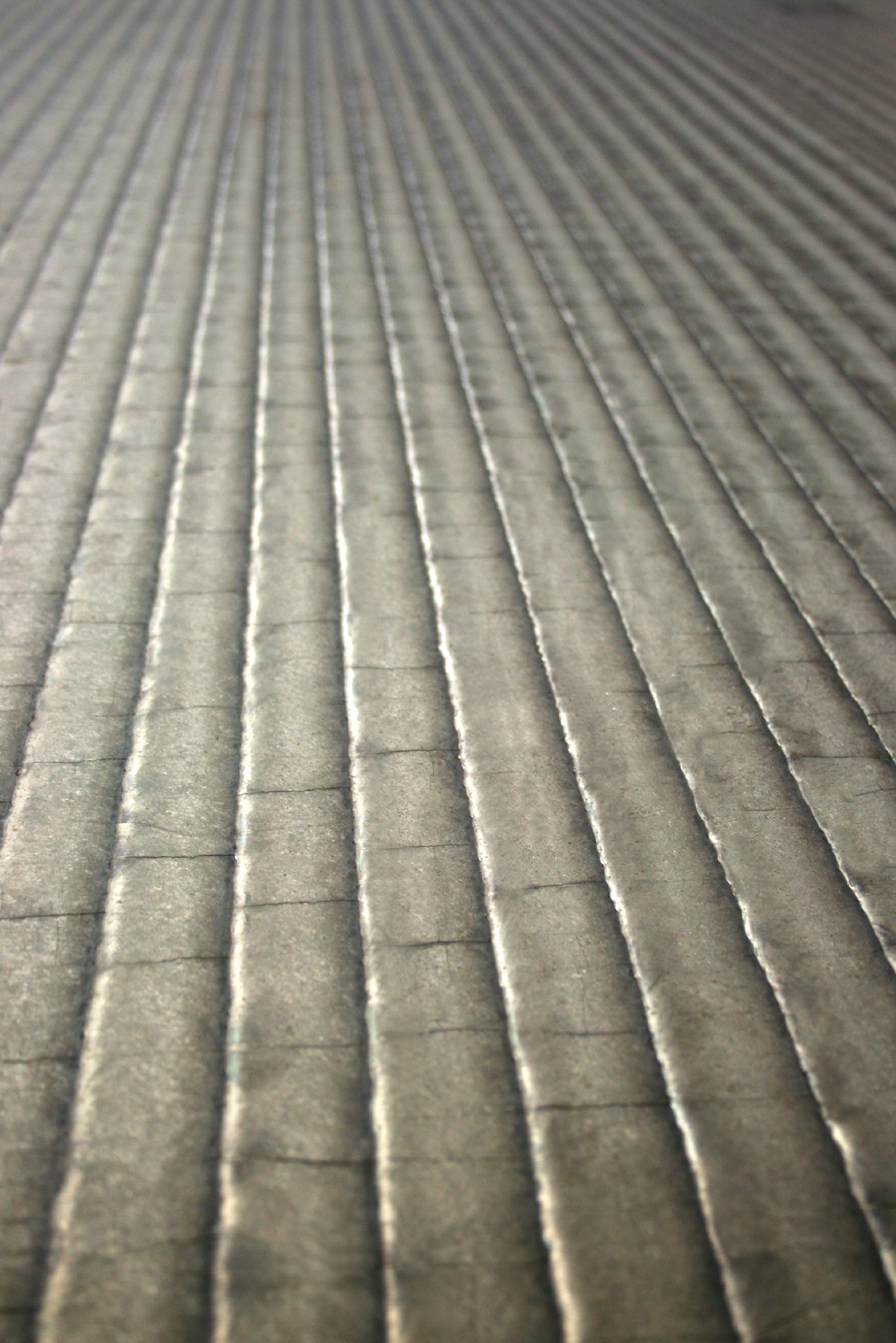

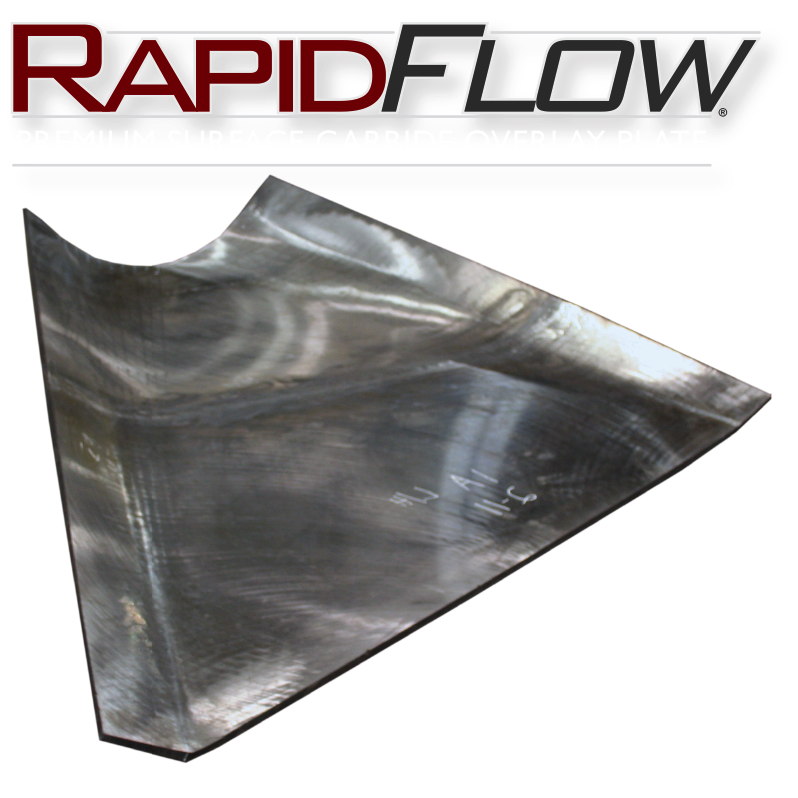

SAS Global Engineers a smooth surface finish on all SureAlloy® Premium Weld Overlay Products. The standard SureAlloy® surface finish can be blanchard ground to provide an even lower coefficient of friction for applications with heavy material hang-up issues. This premium surface is known as RapidFlow® Premium Surface Carbide Overlay Plate. The surface is ground and polished to a 0.2 Ra Micro-Meters finish. This finish is smoother than a stainless steel 304 with 2B finish.

LEARN MORE

Abrasion: abrasive wear is caused by hard particles that are forced against and move along a solid surface.


Impact: impact is caused when hard particles are dropped onto a solid surface. When the impact  exceeds the elastic limits of the metal it deforms beneath the point of impact. This deformation causes cracking and/or spalling from either a severe blow or repeated lighter blows.


Erosion: erosive wear is caused by the cutting action of moving particles carried by a fluid, liquid or gas, which remove fragments of material from the solid surface.
